VOVOX®

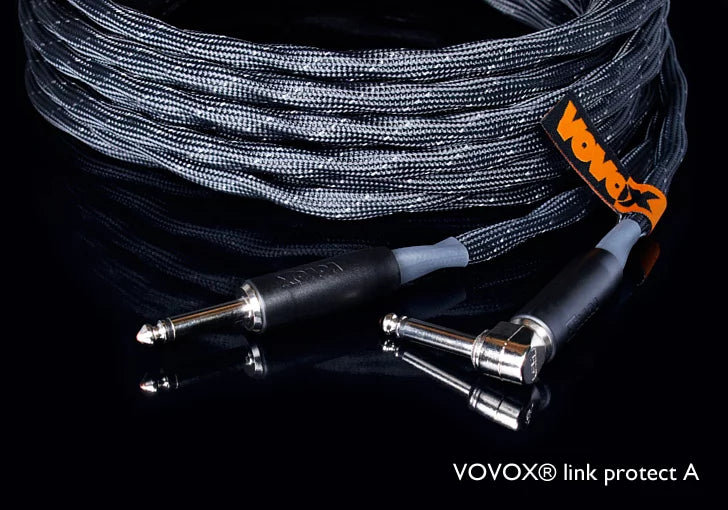

VOVOX Link Protect A Instrument 6.0706 - New Version 7.0704
VOVOX Link Protect A Instrument 6.0706 - New Version 7.0704
Input: Angled Phone
Output: Angled Phone
InstrumentCable
The multi-purpose sound conductor for transmission of unbalanced signals. Whether live on stage or in the recording studio, this is the perfect cable for all electrically amplified musical instruments such as electrical guitar, bass, E-piano, or keyboards. Also great for acoustic instruments with pickup systems.
l Single solid core conductors for signal and ground
l Silver-plated, oxygen-free copper conductors
l Pigment and plasticizer-free high purity polymers
l Shielded
l Optimally protected against microphonics
Made in Switzerland
VOVOX® sound conductors are hand-assembled in Switzerland. The cables, including the solder, are lead-free.
Connectors for VOVOX® link protect A
Our pronounced goal is the perfect transmission of sound signals. To achieve this aim, the cable, but also the connections, must fulfill our requirements. Since most phone plugs available on the market are designed with only their mechanical properties in mind, we use our own VOVOX® phone plugs: A ¼" phone plug offering both first-class functionality and first-class sound.
l Optimized signal contact made of copper
l Robust housing made of fiber-reinforced engineering-plastic
l Optimal bend-protection
l Efficient strain-relief
l Lead-free soldering
Straightor-angled ¼" phone plugs?
Especially in the case of instrument cables, we suggest carefully choosing the kind of connector that suits you best: Using a 90° right angle plug will often reduce the mechanical stress on the instrument as well as on the cable. Like this, it contributes to longer service life of both, cable and jack. For acoustic guitars, angled plugs are usually the better choice.
High-gradeconductor material
The selection of the right conductor material is crucial for sound. The basis of VOVOX® link sound conductors is silver-plated solid-core conductors made from oxygen-free high purity SPOFHCcopper. Because silver has even better conductivity than copper, the current density is additionally enhanced in the important surface boundary.
Very low capacitance
It is impossible to judge the quality of an instrument cable just based on its capacitance. Nevertheless, having a low capacitance is a precondition for a cable to transmit the whole frequency range. VOVOX® link protects A has very low capacitance of only 90 pF/m.
Ultra-pure polymers
VOVOX® link sound conductors are covered in two layers of high-tech polymer. Although plastics are not directly involved in signal transmission, they do have an effect on sound quality. VOVOX doesn't use any PVC. Only ultra-pure plastics without plasticizers are used. Even the use of color pigments is avoided.
Additional conductor for ground
The conductors within a cable must fulfil several functions. The shield has the main function of protecting the signal conductor from interference. In most cables, the shield is also used as the return signal conductor. VOVOX® consequently separates these functions. This may be a more complex construction, yet it results clearly in better sound quality.
Optimal protection from microphonic noise
When a guitar cable is moved or stepped on, small electrical signals are created due to the change of the capacitance or due to electrostatic charges. This effect is called microphonic. It creates a disturbing crackling noise. Usually, this phenomenon is avoided with the help of conductive plastics. However, like this also sound quality is negatively affected. We have found our own technique to solve the problem of microphonic noise using natural materials - without compromising sound quality.
